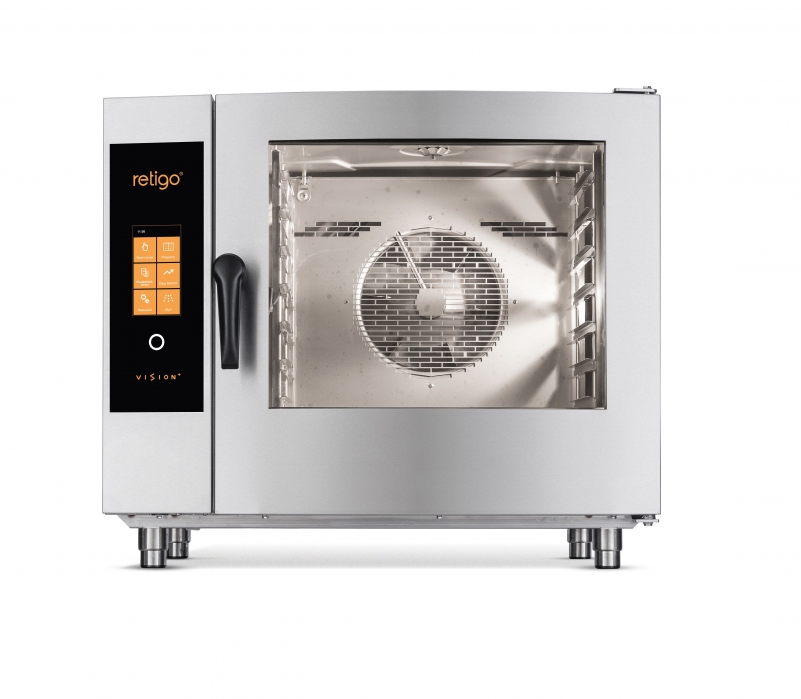

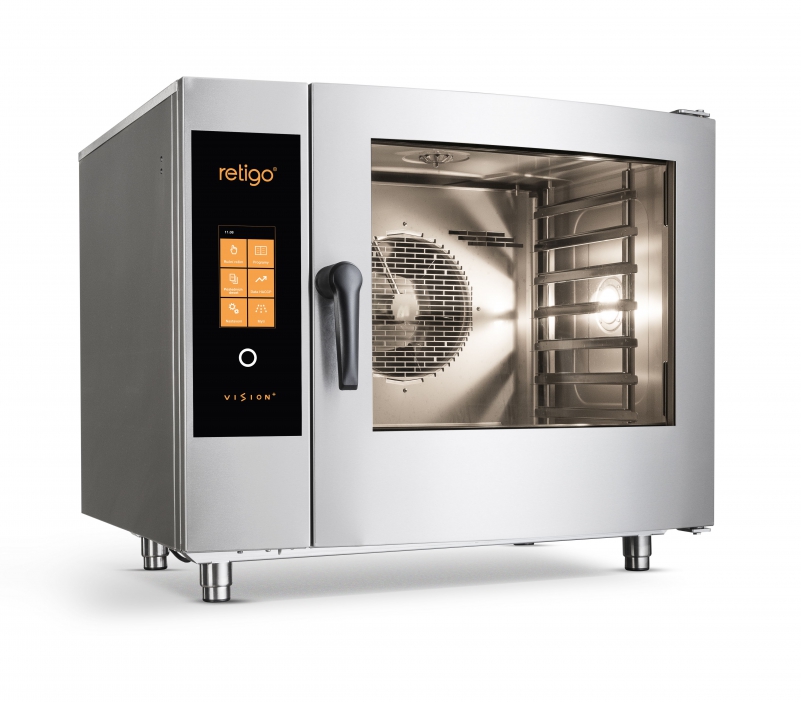

萬能蒸烤箱 O 611 PLUS

萬能蒸烤箱 O 611 PLUS

新系列的Retigo Orange Vision Plus萬能蒸烤箱引入全新標準,結合了7英寸觸摸屏賦予的驚人簡易操作以及Vision Controls系統,以及物美價廉的設備,其包括99個程式。一系列可選配置選項可供您根據廚房的需要對設備進行量身定制。新型Orange Vision Plus具有非常高的性價比,加之

+ 7英吋的快速響應觸控螢幕
+ 高度直觀和簡單的控制方式
+ 活性清洗
+ 7風扇轉速和自動風扇停止
+ 標準的99個程式
+ 主螢幕上的HACCP
+ 區域網路和乙太網路連接界面
+ 三層玻璃門
+ GN 橫向定位,更高的安全度,更佳的視覺控制
+ 塑膠零件最少以及耐用設計

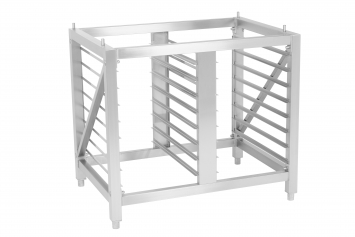

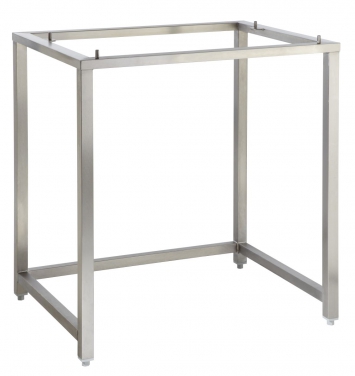

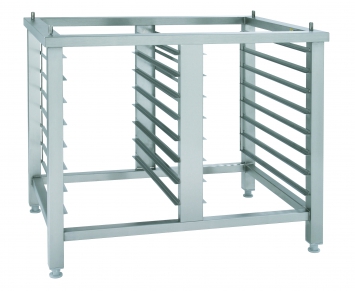

Retigo Vision萬能蒸烤箱最暢銷的尺寸之一。611尺寸是每日供應量51到150份餐點公司的理想之選。烹飪容器的尺寸為GN 1/1 (530x325 mm)。可搭配611尺寸購買多種配件,如各種不鏽鋼支架,Vision Vent hood等。611型號也可與其他的萬能蒸烤箱或再生器進行組合,從而形成一套設備(保溫箱)。蒸汽生成系統為注入式或鍋爐式。熱源來自電力或燃氣。

要求

TODO /3d/nejaky_soubor_b-623.html

獨特的功能

Vision 完美烹飪

讓顧客們再次光顧。透過Retigo Vision萬能蒸烤箱, 讓您能够平心靜氣,實現卓越的烹飪成果。準備的食 物擁有完美的色澤、多汁鮮美,酥脆,同時脂含量最 低,有益健康。

可視設計

讓您輕鬆舒適烹飪。體驗超凡的功能、人體工學和誘 人外觀帶來的絕佳效果。 一切旨在實現安全、衛生和 長期可靠。

Vision Controls

讓您能够專注於烹飪和重要的事情。市場上最簡單的 控制器,為您節省時間,讓您快速輕鬆地進行所有必 要的設定。即使手上有油或戴著手套,觸控面板也能 快速反應。根據需要調節主菜單。

聰明投資

每日節省,每日賺錢。 內置熱交換器、三層彩釉玻璃、50毫米厚低耗自動清 洗保溫層,確保實現卓越的投資回報率。

標準功能和選用配備

烹飪

  • Hot air 30 – 300 °C
  • Combination 30 – 300 °C
  • Steaming 30 – 130 °C
  • Bio steaming 30 – 98 °C
  • Overnight cooking – Saves time and money.
  • Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
  • Crosswise racks – Safer and comfortable GN handling. Better product visual control.
  • Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
  • Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.
  • Sous-vide, Drying, Sterilization, Confit, Smoking – Great way to make your menu special.

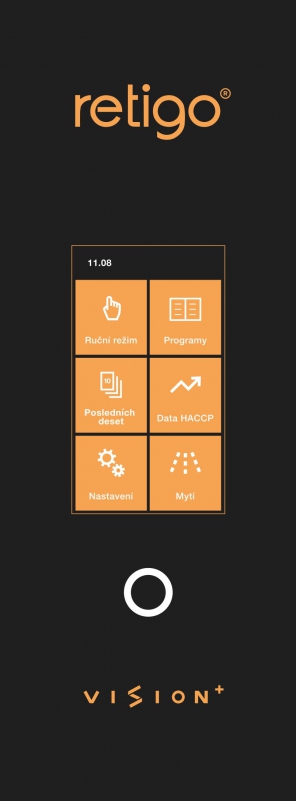

Vision Touch Controls

  • 7“ display – Perfect overview, easy and intuitive control.
  • 99 programs as a standard
  • Automatic start – The ability to schedule a delayed start.
  • Continuous cooking time option - Saves your time during busy operations.

其他設備

  • Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
  • Triple glazed door glass - Advanced energy savings and external glass that does not burn you.
  • Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
  • Massive door handle – Comfortable and safe handling with silver ion material contains for bacteria reduction.
  • AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
  • Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
  • Run-off tray under the door – No slipping on the wet floor.
  • Two water inlets – Saves a water treatment unit‘s capacity.
  • WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
  • Removable GN holders with 65 mm spacing.

連通性

  • USB plug-in – Transfer useful data easily to and from the combi oven.
  • Ethernet/LAN – Allows remote access for data management.
  • VisionCombi software – Program and pictogram management in your PC, HACCP data view.

操作日誌

  • HACCP records – Easy and immediate analysis of critical cooking points right on the display.
  • Complete operating records

服務

  • BCS (Boiler Control System) – Nothing stops you from steam cooking with the in-built advance direct steam generation system.
  • SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

技術參數

型號O 611 i+O 611 b+O 611 ig+
技術規格 2E0611IA  2E0611BA  2G0611IA
能源 瓦斯
蒸汽發生器 噴射 鍋爐 噴射
容量 7 x GN1/1 7 x GN1/1 7 x GN1/1
烘焙層架( 選配 )  5 x 600/400 5 x 600/400 5 x 600/400
每餐供應量 51-150 51-150 51-150
盤距 65 mm 65 mm 65 mm
尺寸(寬x高x深) 933 x 786 x 821 mm 933 x 786 x 821 mm 933 x 786 x 821 mm
重量 116 kg 122 kg 127 kg
總功率 10,9 kW 10,9 kW 0,74 kW
加熱功率  10,3 kW 10,3 kW 13 kW
蒸汽生成功率 - 9 kW -
保險絲 16 A 16 A 10 A
電壓 3N~/380-415V/50-60 Hz 3N~/380-415V/50-60 Hz 1N~(2~)/220-240V/50-60 Hz
噪音等級 最大70 dBA 最大70 dBA 最大70 dBA
進水/排水接口 G 3/4” / 50 mm G 3/4” / 50 mm G 3/4” / 50 mm
氣體接口 - - G 3/4”
溫度 30 - 300 °C 30 - 300 °C 30 - 300 °C



圖紙

電蒸鍋 O 611 i, b+

                          A - 瓣閥 | B - 煙囪 | C - 排水 | E - 電力 | V1 - 未經處理的水 | V2 - 處理過的水

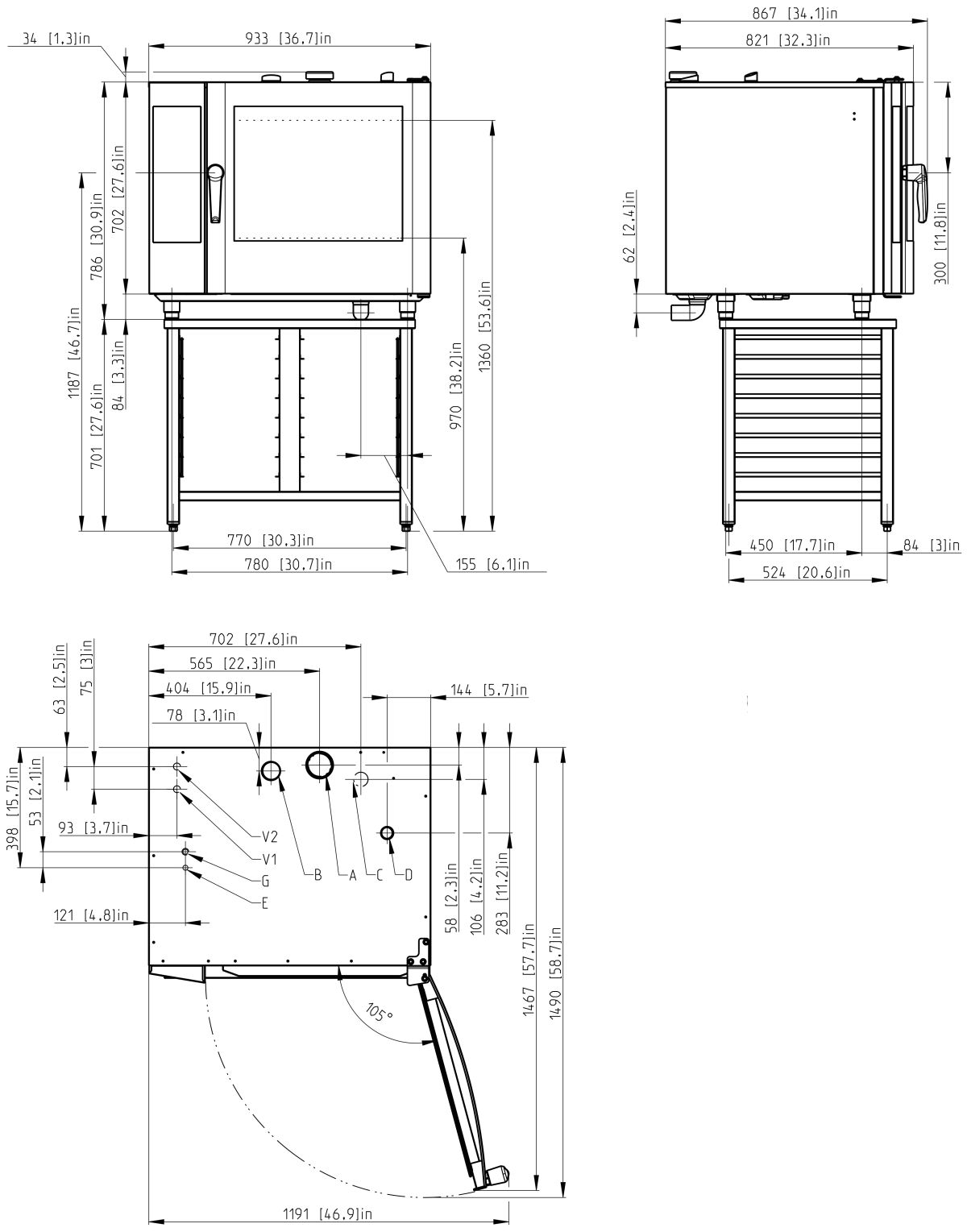

燃氣萬能烤箱 O 611 ig+



                          A - 瓣閥 | B - 煙囪 | C - 排水 | D - 煙氣排放 | E - 電力 | G - 氣體 | V1 - 未經處理的水 | V2 - 處理過的水
