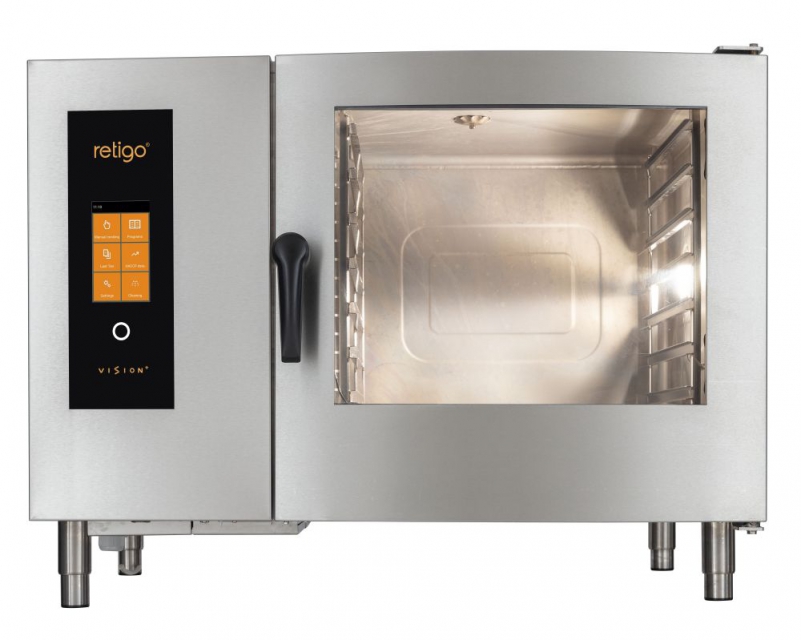

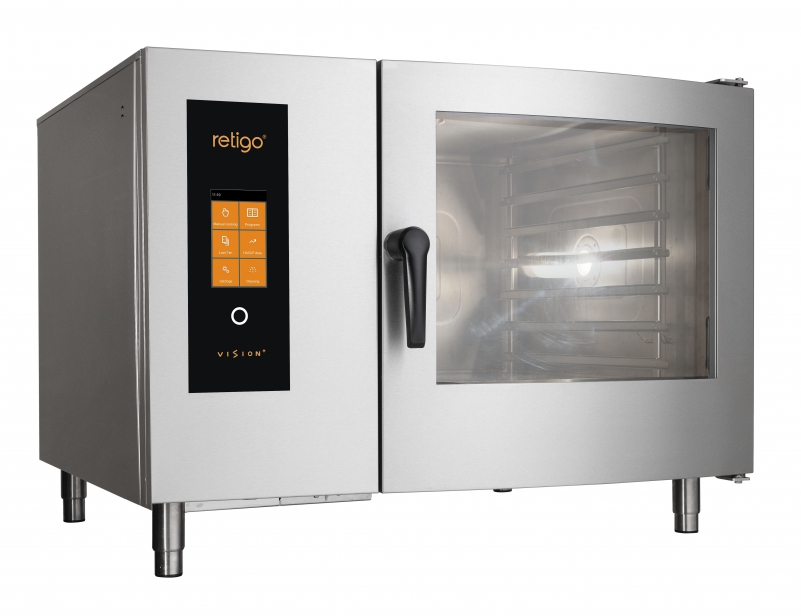

萬能蒸烤箱 O 621 Plus

新系列的Retigo Orange Vision Plus萬能蒸烤箱引入全新標準，結合了7英寸觸摸屏賦予的驚人簡易操作以及Vision Controls系統，以及物美價廉的設備，其包括99個程式。一系列可選配置選項可供您根據廚房的需要對設備進行量身定制。新型Orange Vision Plus具有非常高的性價比，加之：

+ 7英吋的快速響應觸控螢幕
+ 高度直觀和簡單的控制方式
+ 活性清洗
+ 7風扇轉速和自動風扇停止
+ 標準的99個程式
+ 主螢幕上的HACCP
+ 區域網路和乙太網路連接界面
+ 三層玻璃門
+ GN 橫向定位，更高的安全度，更佳的視覺控制
+ 塑膠零件最少以及耐用設計

El tamaño 621 es ideal para trabajar entre 100 y 300 comensales al dia. El tipo de cubeta gastronorm es la GN 2/1 (650x530 mm). Una amplia gama de accesorios se puede añadir a la compra del modelo 621, varios tipos de soportes en acero inoxidable, etc. El modelo 621 se puede colocar en combinación con 621 o 1021 combi en un kit. La generación de vapor es a través de inyección directa. La alimentación es electricidad.

照片庫

要求

TODO /3d/nejaky_soubor_b-623.html

獨特的功能

Vision 完美烹飪

讓顧客們再次光顧。透過Retigo Vision萬能蒸烤箱，讓您能够平心靜氣，實現卓越的烹飪成果。準備的食物擁有完美的色澤、多汁鮮美，酥脆，同時脂含量最低，有益健康。

可視設計

讓您輕鬆舒適烹飪。體驗超凡的功能、人體工學和誘人外觀帶來的絕佳效果。一切旨在實現安全、衛生和長期可靠。

Vision Controls

讓您能够專注於烹飪和重要的事情。市場上最簡單的控制器，為您節省時間，讓您快速輕鬆地進行所有必要的設定。即使手上有油或戴著手套，觸控面板也能快速反應。根據需要調節主菜單。

聰明投資

每日節省，每日賺錢。內置熱交換器、三層彩釉玻璃、50毫米厚低耗自動清洗保溫層，確保實現卓越的投資回報率。

標準功能和選用配備

烹飪

Hot air 30 – 300 °C
Combination 30 – 300 °C
Steaming 30 – 130 °C
Bio steaming 30 – 98 °C
Overnight cooking – Saves time and money.
Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
Crosswise racks – Safer and comfortable GN handling. Better product visual control.
Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.

Vision Touch Controls

7“ display – Perfect overview, easy and intuitive control.
99 programs as a standard
Automatic start – The ability to schedule a delayed start.
Continuous cooking time option - Saves your time during busy operations.

其他設備

Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
Triple glazed door glass - Advanced energy savings and external glass that does not burn you.
Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
Massive door handle – Comfortable and safe handling with silver ion material contains for bacteria reduction.
AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
Run-off tray under the door – No slipping on the wet floor.
Two water inlets – Saves a water treatment unit‘s capacity.
WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
Removable GN holders with 73 mm spacing.

連通性

USB plug-in – Transfer useful data easily to and from the combi oven.
Ethernet/LAN – Allows remote access for data management.
VisionCombi software – Program and pictogram management in your PC, HACCP data view.

操作日誌

HACCP records – Easy and immediate analysis of critical cooking points right on the display.
Complete operating records

服務

SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.

技術參數

Model	O 621 i+
Technical specification	2E0621IZ
Energy	Electricity
Steam generation	Injection
Capacity	6 x GN2/1
Capacity (optional)	12 x GN1/1
Capacity of meals	100 - 300
Spacing	73 mm
Dimensions (w x h x d)	1121 x 826 x 1018 mm
Weight	160 kg
Total power	18,6 kW
Heat power	18 kW
Fuse protection	32 A
Voltage	3N~/380-415V/50-60 Hz
Noise level	max. 70 dBA
Water/Drain connection	G 3/4” / 50 mm
Temperature	30 - 300 °C
