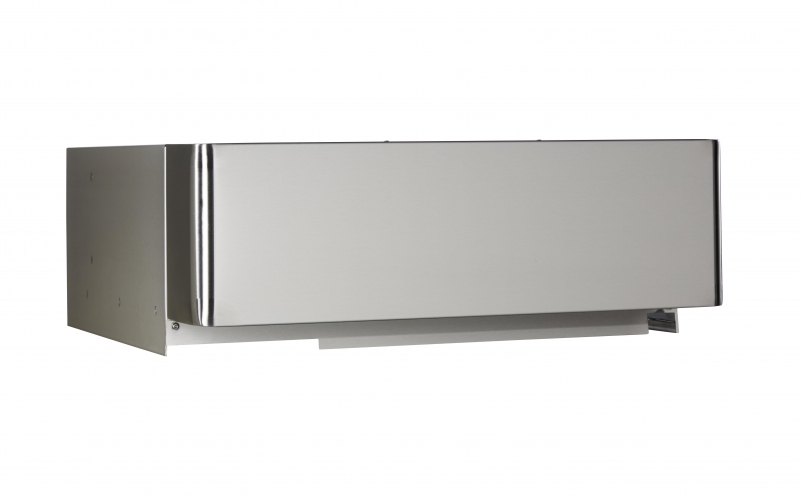

適用於VISION 623萬能蒸烤箱的VISION VENT冷凝罩RPH623

適用於VISION 623萬能蒸烤箱的VISION VENT冷凝罩RPH623

RETIGO Vision Vent冷凝罩RPH623是專為RETIGO Vision 623萬能蒸烤箱而設計。Vision Vent罩組裝非常簡單。耗電量非常低（直接連接到230V插座或通過裝置連接），而且罩的操作是全自動。

照片庫

要求

TODO /3d/nejaky_soubor_b-623.html

Basic characteristics

  • Compatible with RETIGO Vision 623 combi ovens (both Blue and Orange)
  • Compatible with DeliMaster DM623
  • Easy assembly and disassembly
  • Simple to operate – the exhaust fan will switch on automatically after the combi oven door is opened
  • Easy maintenance
  • No extra water consumption thanks to the air condensation unit
  • Strong performance eliminates unpleasant kitchen odor
  • 220 V voltage – very low use of electric energy

Technical data

ModelRPH0623
Dimensions (w x h x d)  688 x 251 x 633 mm
Weight 40 kg
Total power 0,165 kW
Voltage* 1N~/230V/50-60Hz
Noise level (min./max.) 46 dB/ 50 dB
Max. air flow 760 m3/hr.

 * The hood is connected to the power supply separately. The power connection via the combi oven is a possible additional option (see optional accessories for the relevant products).

Drawings

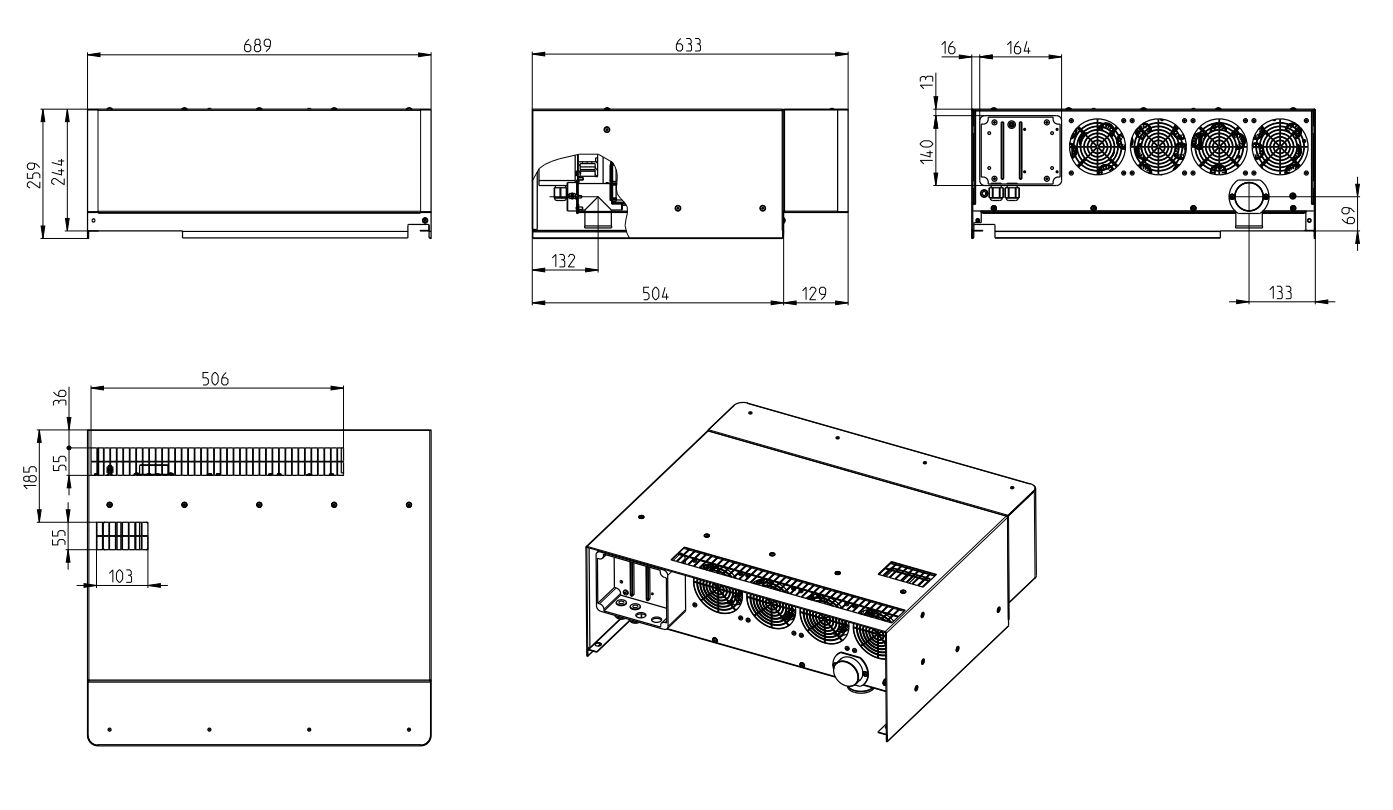

RPH623

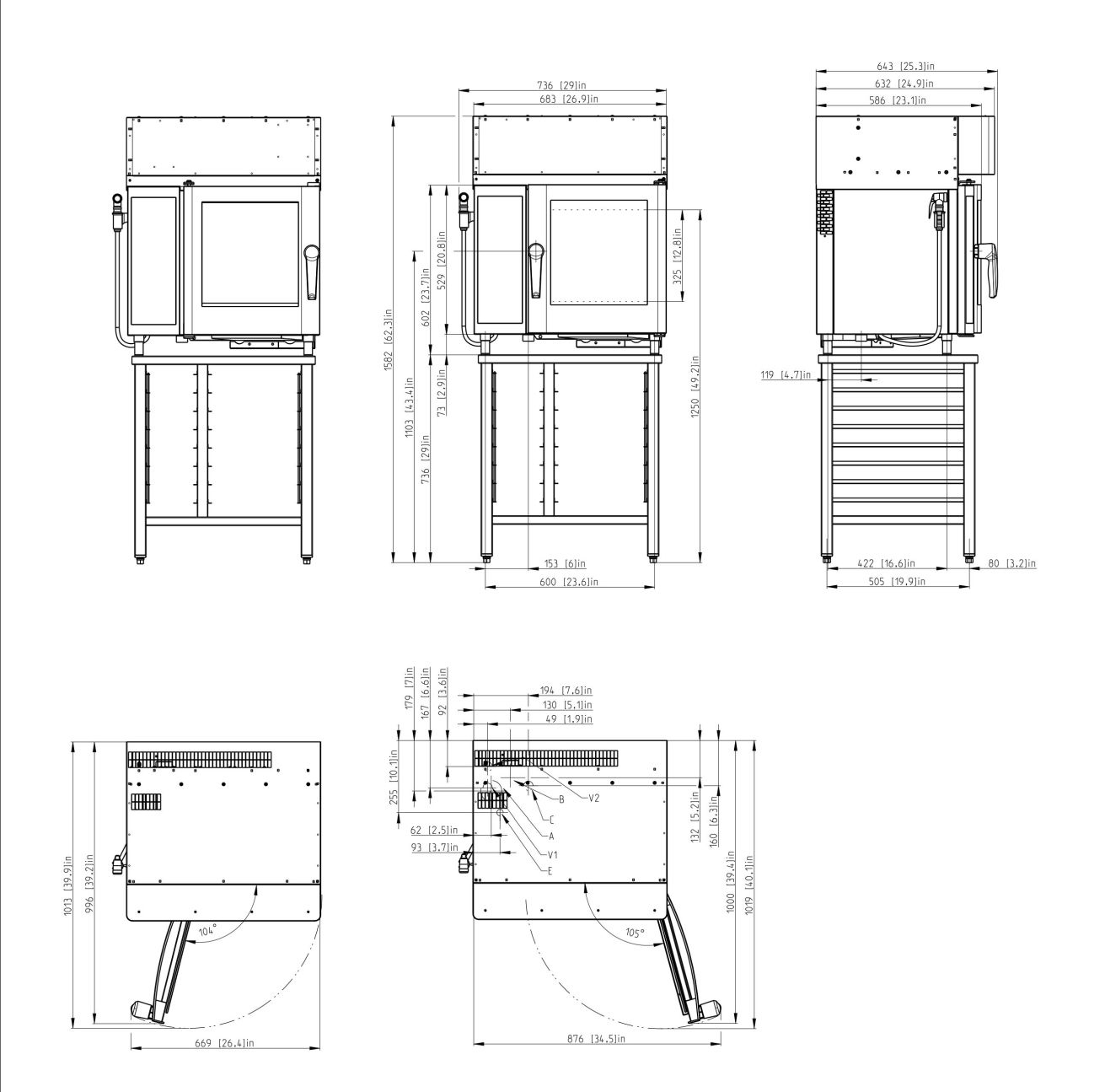

Set 623/RPH623

A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water

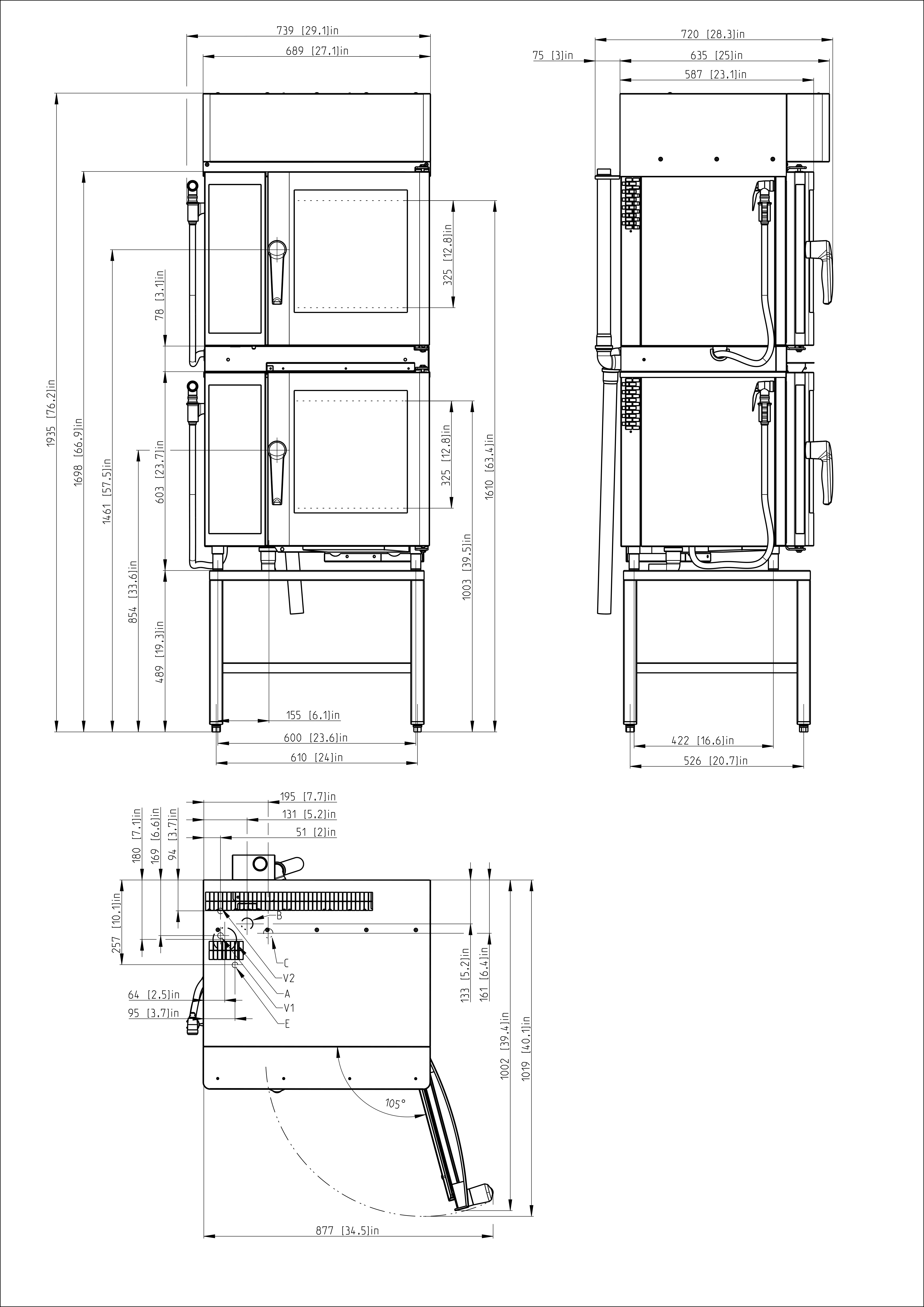

Set 623/623/RPH623

A - Flap valve | B - Chimney | C - Drain | E - Electricity | V1 - Untreated water | V2 - Treated water
