適用於VISION 611或1011萬能蒸烤箱的VISION VENT冷凝罩RPH0610

適用於VISION 611或1011萬能蒸烤箱的VISION VENT冷凝罩RPH0610

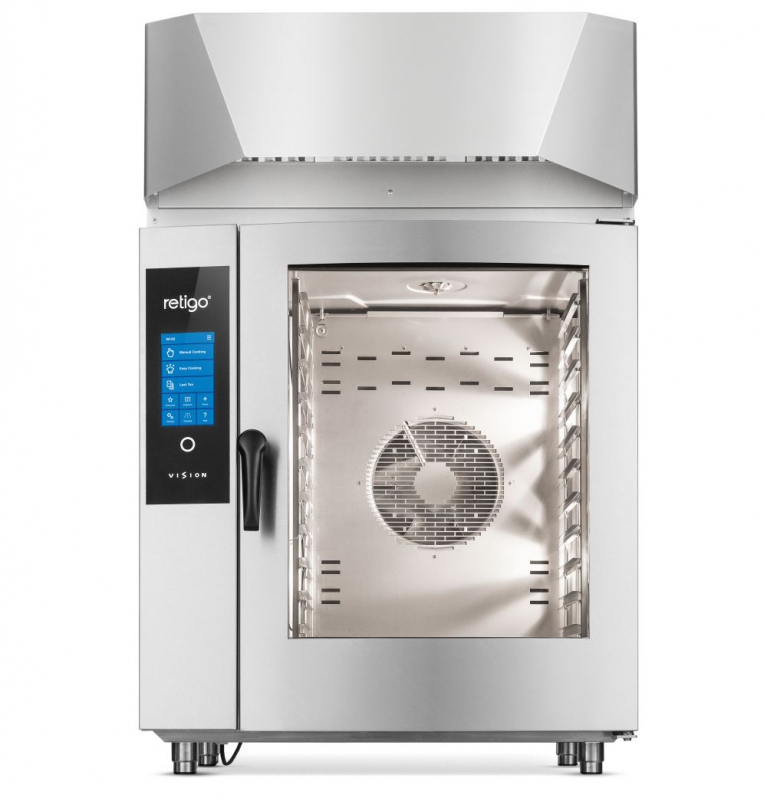

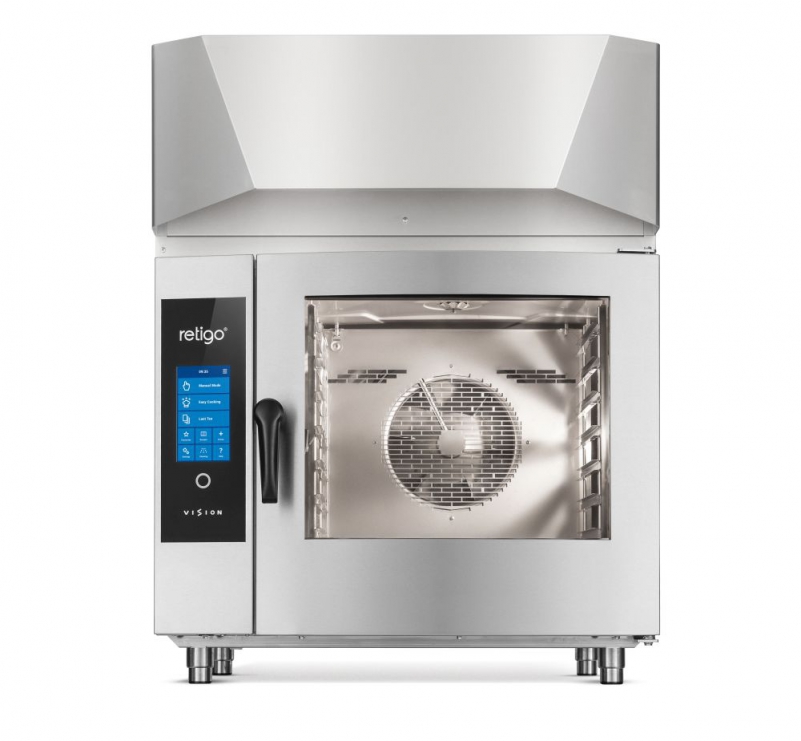

RETIGO Vision Vent hood冷凝罩RPH0610是專為RETIGO Vision 611、1011電力驅動萬能蒸烤箱和DeliMaster DM5、DM8糖果點心烤箱而設計。Vision Vent罩組裝非常簡單。耗電量非常低（直接連接到230V插座或通過裝置連接），而且罩的操作是全自動。Vision Vent hood冷凝罩與燃氣萬能蒸烤箱不相容。

要求

TODO /3d/nejaky_soubor_b-623.html

Basic characteristics

  • Compatible with RETIGO Vision 611, 1011 combi ovens (both Blue and Orange)
  • Compatible with DeliMaster DM5, DM8.
  • Not compatible with gas units.
  • Easy assembly and disassembly
  • Simple to operate – the exhaust fan will switch on automatically after the combi oven door is opened
  • Easy maintenance
  • No extra water consumption thanks to the air condensation unit
  • Strong performance eliminates unpleasant kitchen odor
  • 220 V voltage – very low use of electric energy

Technical data

ModelRPH0610
Dimensions (w x h x d)  938 x 409 x 912 mm
Weight 60 kg
Total power 0,4 kW
Voltage* 1N~/230V/50-60Hz
Noise level (min./max.) 63 dB/ 68 dB
Max. air flow 1000 m3/hr.

 * The hood is connected to the power supply separately. The power connection via the combi oven is a possible additional option (see optional accessories for the relevant products).

Drawings

RPH0610

ModelRPH0610
A 938 mm
B 912 mm
C 725 mm
D 79 mm
E 408 mm
