適用於VISION 2011萬能蒸烤箱的VISION VENT冷凝罩RPH2011

適用於VISION 2011萬能蒸烤箱的VISION VENT冷凝罩RPH2011

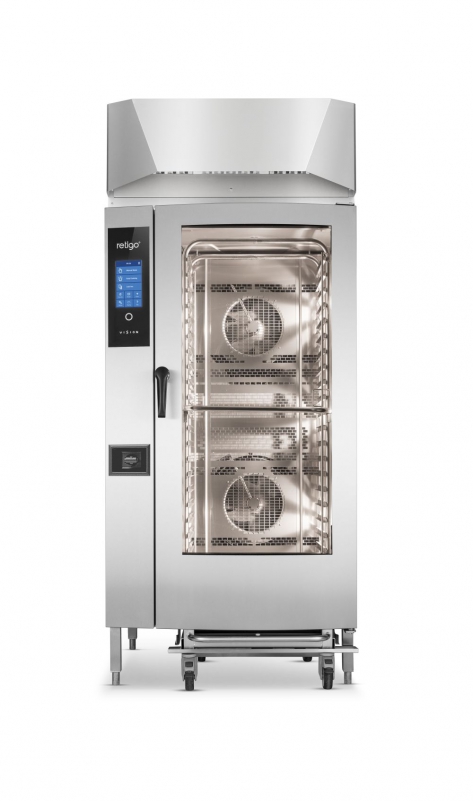

RETIGO Vision Vent冷凝罩RPH2011是專為RETIGO Vision 2011萬能蒸烤箱而設計。Vision Vent罩組裝非常簡單。耗電量非常低（直接連接到230V插座或通過裝置連接），而且罩的操作是全自動。

照片庫

要求

TODO /3d/nejaky_soubor_b-623.html

Basic characteristics

  • Compatible with RETIGO Vision 2011 combi ovens (both Blue and Orange)
  • Not compatible with gas units
  • Easy assembly and disassembly
  • Simple to operate – the exhaust fan will switch on automatically after the combi oven door is opened
  • Easy maintenance
  • No extra water consumption thanks to the air condensation unit
  • Strong performance eliminates unpleasant kitchen odor
  • 220 V voltage – very low use of electric energy

Technical data

ModelRPH2011
Dimensions (w x h x d)  953 x 409 x 920 mm
Weight 60 kg
Total power 0,4 kW
Voltage* 1N~/230V/50-60Hz
Noise level (min./max.) 63 dB/ 68 dB
Max. air flow 1000 m3/hr.

 * The hood is connected to the power supply separately. The power connection via the combi oven is a possible additional option (see optional accessories for the relevant products).

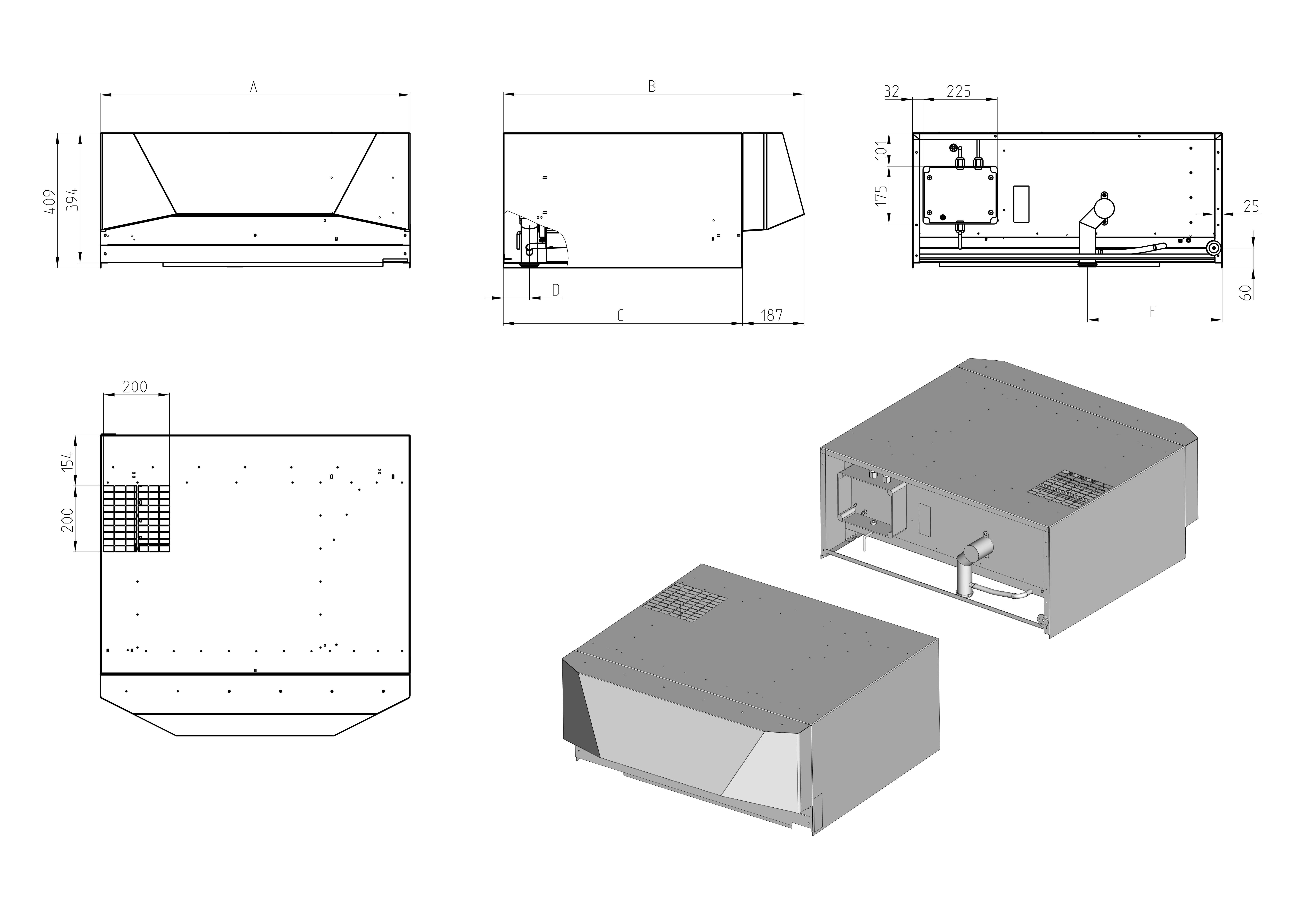

Drawings

RPH2011

ModelRPH2011
A 953 mm
B 920 mm
C 735 mm
D 88 mm
E 421 mm
