The model series of combi ovens RETIGO Orange Vision was created from requirements to satisfy customers with fewer demands on the number of functions in the basic configuration, but with emphasis on high quality and easy control. As opposed to the model series Blue Vision, Orange Vision combi ovens are equipped only with an automatic cleaning system, 7-speed fan, and essential basic functions. Optional equipment includes an integrated shower, a flap valve and 99 programs with 9 steps. The customer thus has the option of configuring his machine based on needs and not to pay for something he will never use. The elegant functional design underscores the simplicity of devices, the LED display enables easy settings and control.

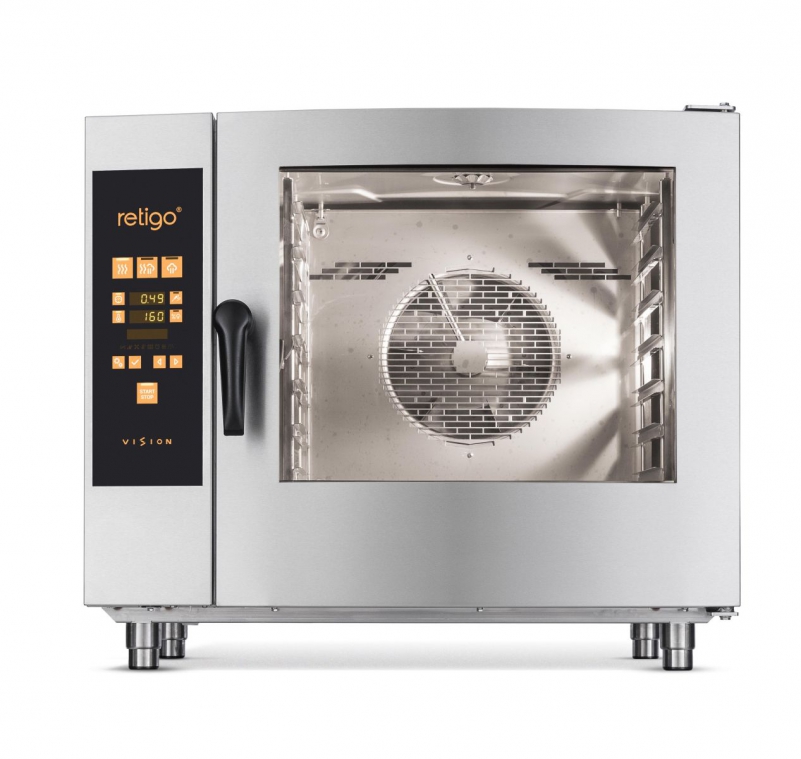

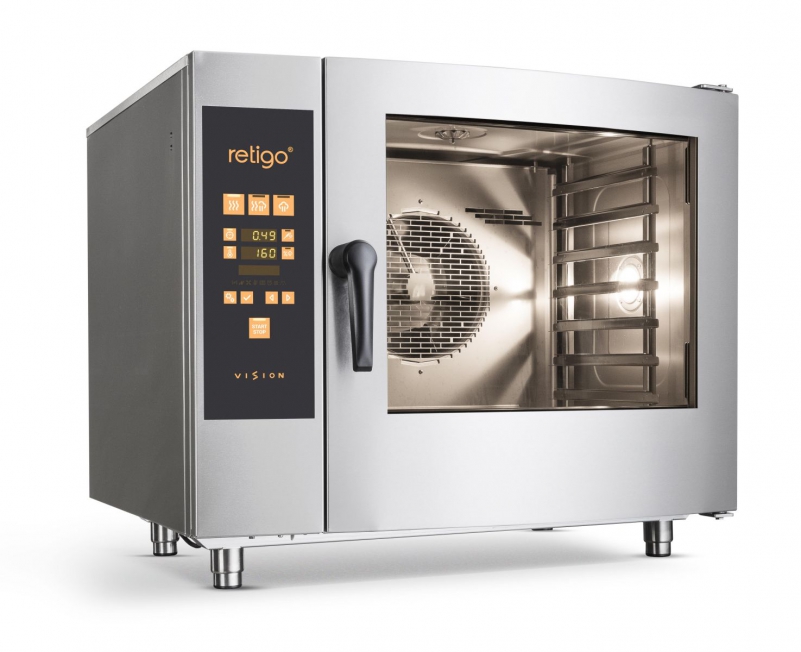

One of Retigo Vision's best-selling sizes of combi oven. The size of 611 is ideal for operations with a capacity of 51-150 meals a day. The gastronorm container size is GN 1/1 (530x325 mm). Wide-ranging accessories can be purchased to go with the 611 size - – various types of stainless steel stands, the Vision Vent hood, etc. Model 611 can be built into a set with another combi oven or regenerator (holding cabinet). The steam generation system is injection or boiler-based. The heat source is electricity or gas.
讓顧客們再次光顧。透過Retigo Vision萬能蒸烤箱, 讓您能够平心靜氣,實現卓越的烹飪成果。準備的食 物擁有完美的色澤、多汁鮮美,酥脆,同時脂含量最 低,有益健康。
讓您輕鬆舒適烹飪。體驗超凡的功能、人體工學和誘 人外觀帶來的絕佳效果。 一切旨在實現安全、衛生和 長期可靠。
讓您能够專注於烹飪和重要的事情。市場上最簡單的 控制器,為您節省時間,讓您快速輕鬆地進行所有必 要的設定。即使手上有油或戴著手套,觸控面板也能 快速反應。根據需要調節主菜單。
每日節省,每日賺錢。 內置熱交換器、三層彩釉玻璃、50毫米厚低耗自動清 洗保溫層,確保實現卓越的投資回報率。
型號 | O 611 i | O 611 b | O 611 ig |
---|---|---|---|
技術規格 | 2E0611IA | 2E0611BA | 2G0611IA |
能源 | 電 | 電 | 瓦斯 |
蒸汽發生器 | 噴射 | 鍋爐 | 噴射 |
容量 | 7 x GN1/1 | 7 x GN1/1 | 7 x GN1/1 |
烘焙層架( 選配 ) | 5 x 600/400 | 5 x 600/400 | 5 x 600/400 |
每餐供應量 | 51-150 | 51-150 | 51-150 |
盤距 | 65 mm | 65 mm | 65 mm |
尺寸(寬x高x深) | 933 x 786 x 821 mm | 933 x 786 x 821 mm | 933 x 786 x 821 mm |
重量 | 116 kg | 122 kg | 127 kg |
總功率 | 10,9 kW | 10,9 kW | 0,74 kW |
加熱功率 | 10,3 kW | 10,3 kW | 13 kW |
蒸汽生成功率 | - | 9 kW | - |
保險絲 | 16 A | 16 A | 10 A |
電壓 | 3N~/380-415V/50-60 Hz | 3N~/380-415V/50-60 Hz | 1N~(2~)/220-240V/50-60 Hz |
噪音等級 | 最大70 dBA | 最大70 dBA | 最大70 dBA |
進水/排水接口 | G 3/4” / 50 mm | G 3/4” / 50 mm | G 3/4” / 50 mm |
氣體接口 | - | - | G 3/4” |
溫度 | 30 - 300 °C | 30 - 300 °C | 30 - 300 °C |
A - 瓣閥 | B - 煙囪 | C - 排水 | E - 電力 | V1 - 未經處理的水 | V2 - 處理過的水
A - 瓣閥 | B - 煙囪 | C - 排水 | D - 煙氣排放 | E - 電力 | G - 氣體 | V1 - 未經處理的水 | V2 - 處理過的水
