Retigo s.r.o.

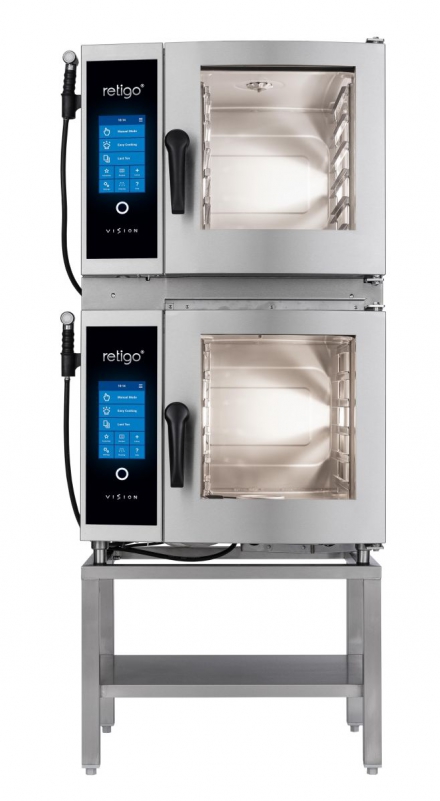

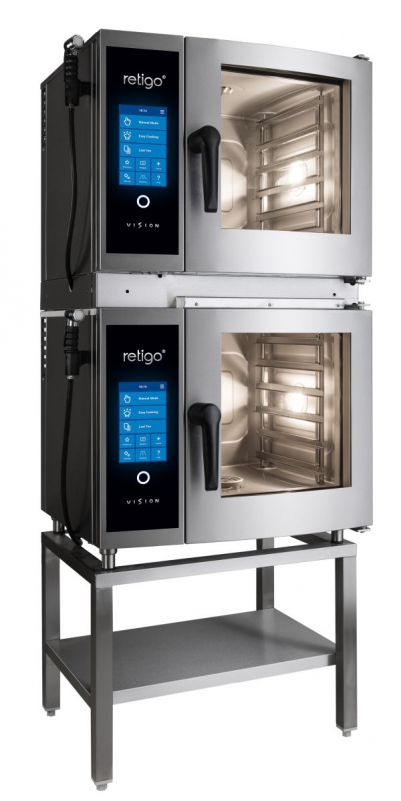

Set 623/623

Set 623/623

The price covers additional charge for components, which allow to build a tower:

  • stand
  • special chimney
  • connecting material
  • stainless steel cover between combi ovens

There is possible left or right door configuration.



要求

TODO /3d/nejaky_soubor_b-623.html

Height of the set

Total height

Height to the first upper tray

With stand Without stand With stand Without stand
1698 mm (stand 489 mm high) 1209 mm 1521 mm (stand 489 mm high) 1071 mm





Drawings

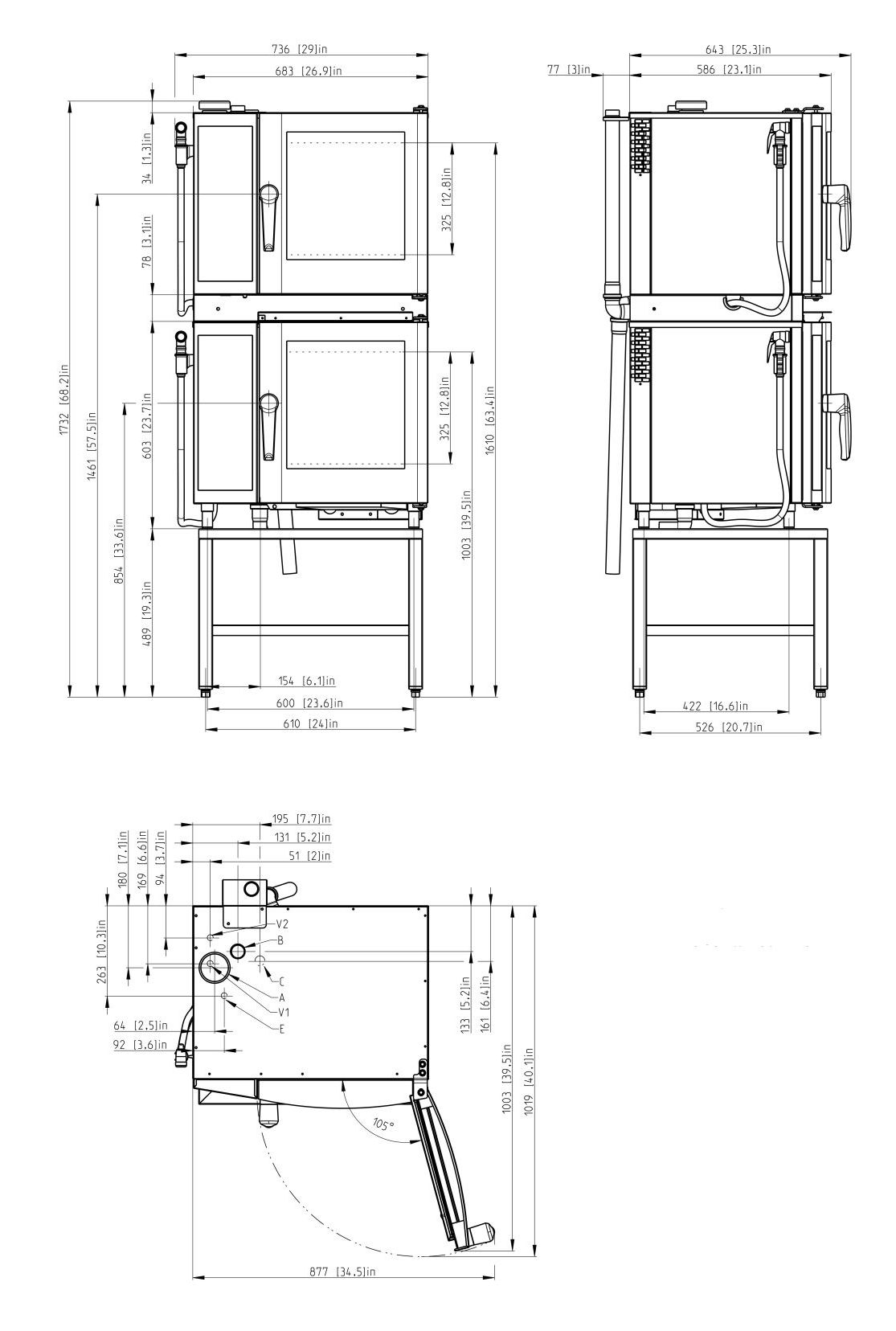

Set 623/623 - electric



A - Flap valve | B - Chimney | C - Drain | E - Eletricity | V1 - Untreated water | V2 - Treated water

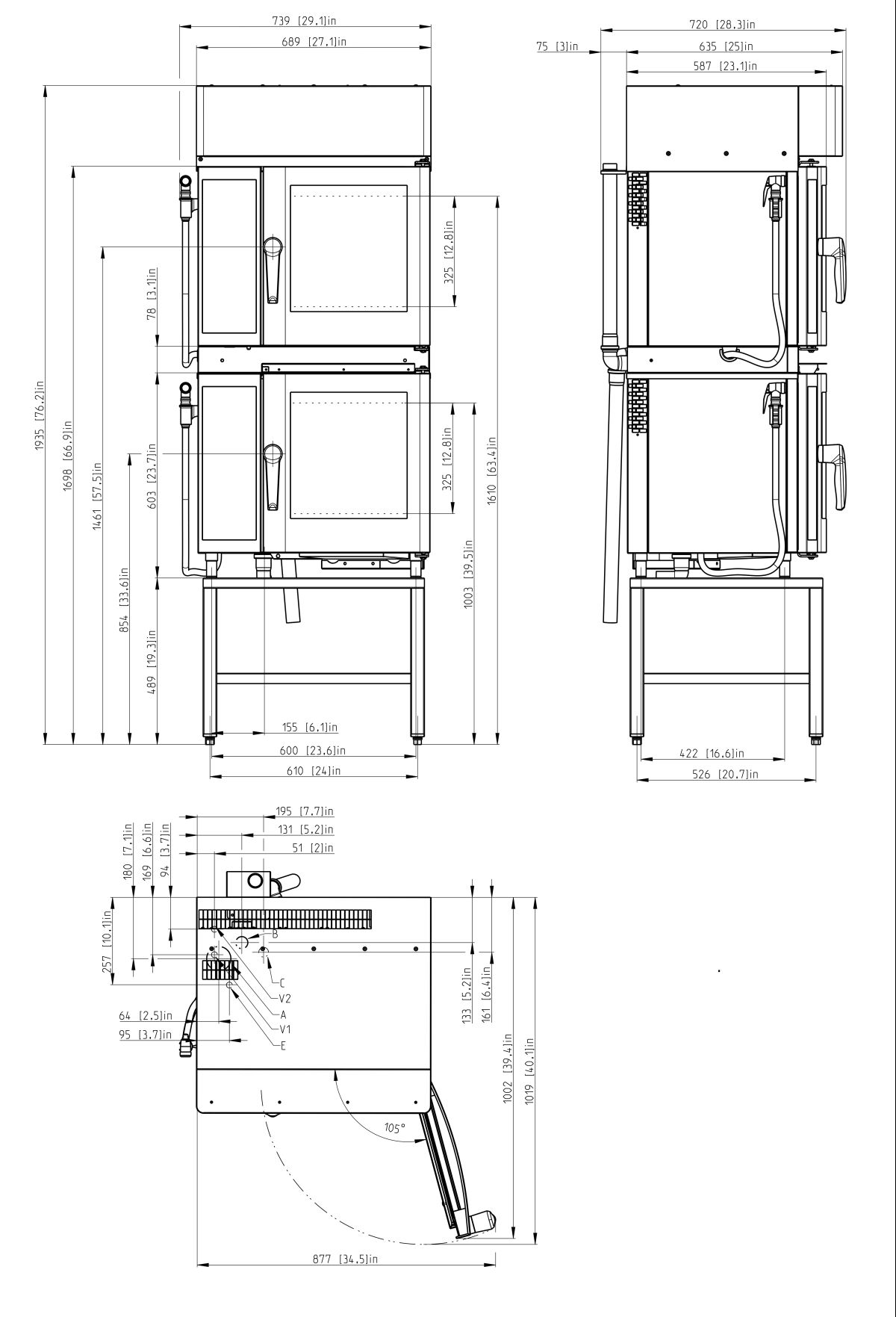

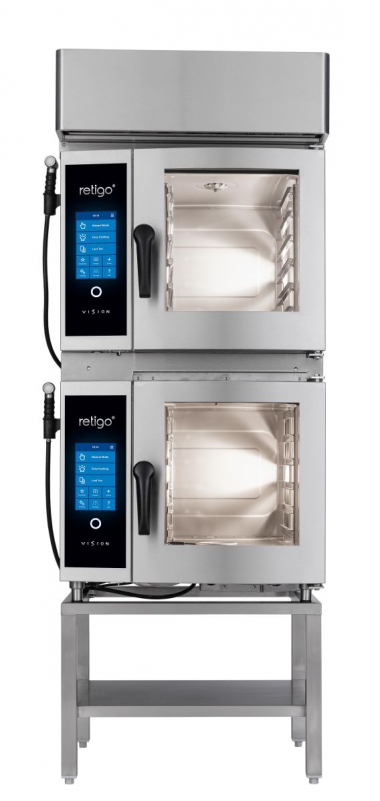

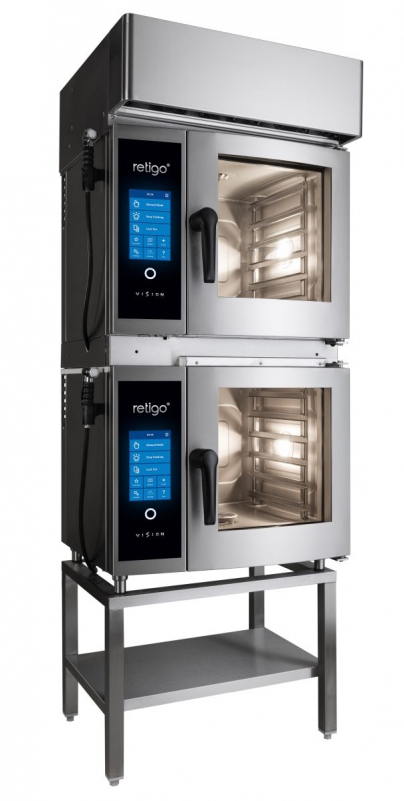

Set 623/623 - electric with Vision Vent condensation hood

A - Flap valve | B - Chimney | C - Drain | E - Eletricity | V1 - Untreated water | V2 - Treated water

選擇性配件
